A Solomon Islands Canoe at the Vatican

On a trip to Italy this month, we visited the Vatican Museums, eager to see masterpieces like the Laocoon group and the Apollo Belvedere. Upon entering, however, the first thing we saw was this plank-built canoe, an eye-catching introduction to an extensive temporary exhibit of boat models and paddles from around the world.

Stern view of a Solomon Islands mon canoe at the Vatican. (Click any image to enlarge.)

Bow of the Solomon Islands mon canoe at the Vatican.

The Vatican's stated purpose for the exhibit is to represent of the diversity and interconnectedness of world cultures. The curators were far more interested in communicating that ecumenical message than in the details of the items on display, for we saw nothing to identify the boat or paddles on exhibit, and the models were accompanied by only scanty information. Nevertheless, we'll concentrate on the exhibit's sole full-size boat in this post, and move on to the paddles and models in subsequent posts.

We believe the canoe is from the Solomon Islands. Haddon and Hornell (in Canoes of Oceania, Vol. 2) identify four types of plank-built monohull canoes in the Solomons. Those with continuous washstrakes like the one here were called mon and were characteristic of the central Solomons, including Bougainville, New Georgia, and Choiseul.

In contrast, canoes called lisi, with discontinuous washstrakes both fore and aft, were characteristic of the southern part of the chain (including Guadalcanal, Malaita and San Cristoval) and of the tiny island of Buka, at the chain's northernmost end. With the exception of its discontinuous washstrakes, the following image of a Buka canoe observed in 1753 by Labillardiere is very much like the canoe in the Vatican. (See also our post on a Solomon Islands canoe at the Peabody Museum of Archaeology and Ethnology, which we now recognize as a lisi.)

"Buka Island Canoe (Solomon Islands)" from Labillardiere (1800), Atlas pour servir a la relation du voyage de la recherche de la Perouse.
(Source: University of Cambridge)

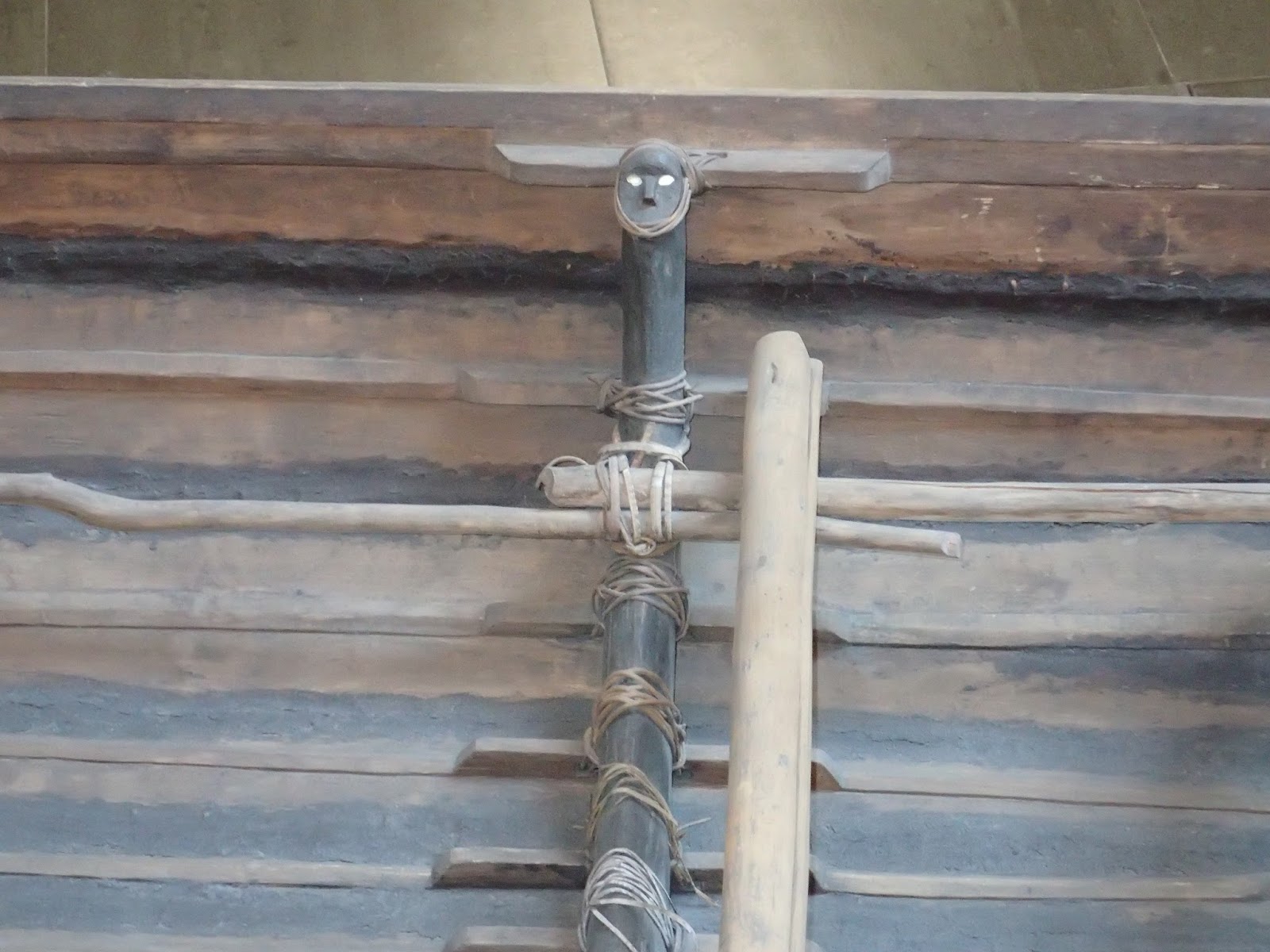

Bent (?) frames amidships, with decorative carving at the upper ends, are lashed to cleats on the planks' interior surface. Also in view is the seat riser.

The exhibit canoe is built of long parallel planks with no keel. Each plank is gotten out with cleats left standing proud on its interior surface near the lower edges, one cleat per rib. These cleats are lashed to ribs with vegetable fiber and caulked with resin made from the "putty nut" (Parinarium laurinum).

Carved frame/thwart units near the bow.

Most of the ribs are roughly round in section and appear to be bent to shape, their top ends being carved with faces that are decorated with eyes of shell inlay. The two forward-most frames and accompanying thwarts are carved from single pieces of wood, and painted, carved decorative elements appear within that perimeter. Continuous thwart risers are lashed to the ribs and run nearly the whole length of the boat, supporting multiple seats for paddlers and passengers.

Bow detail showing a carving of a horned beast (or demon?) at the waterline, extensive shell inlay, and cowry shells lashed to the forward surface of the stem well above the waterline.

The most distinctive feature of the canoe is its tall, elaborately decorated prow and stern. The outboard surfaces of these features are inlaid with thousands of pieces of carved shell in circle and cross patterns, and the decks feature diamond-pattern shell inlays. A grotesque painted and carved animal head (a goat? a demon?) sits right at the waterline on the cutwater with its horns on either side of the stem. Cowry shells are lashed to the fronts of both the stem and sternpost high above the waterline. The stem is capped with a painted carving of two parrot-like birds facing one another over a bulb-topped post that might represent fruit on a tree. The sternpost also features a painted carving at the top of an obscure geometric design.

Carved stem-head decoration

Sources:
Canoes of the Solomon Islands by R.J.A.W. Lever.
"Canoes of the Solomon Islands," from The Maori Canoe by Elsdon Best
Canoes of Oceania, Vol. II: The Canoes of Melanesia, Queensland, and New Guinea, by A.C. Haddon and James Hornell

Related Posts:

Tweet

Buckminster Fuller's Model Boat Collection, Part 2

In this post we look at the remainder of Buckminster Fuller's model boat collection that was recently donated to Penobscot Marine Museum. See our previous post for the first half of the collection.

Chinese junk. Lightweight wood, possibly bamboo. This model has enough detail so that it might be possible to associate it with a specific type, even though some of the features are overly simplified (e.g., the capstan) and others appear to be out of scale. The rigging and the house, however, have received a good amount of care and seem to reflect accurate observation of a real vessel type. The masthead devices, if accurate, may help in identification.

With the hull's extreme tumblehome, the vessel is clearly a bulk carrier, and the scale of the house indicates it's a fairly large one. I believe the deck planks, laid athwartships, would lift off on the real ship to facilitate loading and unloading. Three heavy wales at the waterline strengthen the hull and serve as fenders. The three-masted, fully-battened balanced lug rig is supplemented by one long sweep on each side, which I believe makes this a vessel intended for river/inland use.

Deck beams extend through the sides of the house. Housetops are made of woven material, probably meant to represent bamboo or palm leaf matting.

Details of mizzenmast, deckhouse, transom and the large balanced rudder of complex construction.

Masthead device on foremast

Masthead device on mainmast (mizzen is similar).

Although there are many differences between the present model and this image of a Ma-Yang-Tzu junk from Ships of China by Valentin A. Sokoloff (not the least being the single mast of the Ma-Yang-Tzu versus the three-masted rig on the model), there are a number of similarities that indicate a possible relationship, including: heavy round cross-beams at deck level; sweeps on both sides; the capstan well aft of the bow; a barrel-backed deckhouse with a raised barrel-back coachroof; a tall athwartship "horse" (located over the deckhouse, forward of the coachroof on this vessel); red-topped pins sticking up from the transom; and a balanced rudder with an acute angle at its lower aft corner.
The Ma-Yang-Tzu is a river vessel, and the heavy cross-beams reinforce it and provide points of attachment for the tow line for upstream travel. The pins on the transom are for storing spare towlines.

Chinese seagoing junk. With its deep rocker and high gunwales, this model represents a seagoing junk. Much of the rigging is in disarray but otherwise the model is in good condition. Although some details are out of proportion (for example, the weight of the sail battens and of the rail around the aft deck), there may be enough accurate observation here to facilitate identification with a real ship type.  The color scheme on the sides, the design on the transom, the colorful pole-mounted device on the aft deck, and the shape of the oculus are especially promising in this regard.
The vessel is a three-masted rig with fully battened lugsails that have a distinctly ovoid shape. The foremast has a forward lean; the mainmast is approximately vertical; and the mizzenmast rakes aft.

Stern details, including painted transom design, unbalanced rudder, and heavy wales at the waterline.

There is a capstan aft of the foremast and a tall windlass at the aft end of the main deck, probably used for raising sails. Two tall “horses,” (please advise concerning the correct term in the Comments) one each aft of fore and main masts, appear to be tying-off points for running rigging. There are deck hatches fore and aft of the mainmast.

"Horse" aft of mainmast;, windlass; crossbeams beneath the aft deck extend through the sides of the hull. Is the pole-mounted device on the aft deck a lantern or a symbol identifying the vessel's port of call or purpose?

Small junk, China. This model, somewhat less detailed than the previous one, represents a smaller, simpler vessel. It has a single deck with lower gunwales and what might be termed a schooner junk rig, with two masts, the forward one shorter and raked sharply forward. The mainmast has a slight forward rake. Both masts are set with fully battened lugsails. The foresail has a straight, vertical luff and a moderate amount of roach to the leech. I believe the mainsail is similar. As on the previous model, the rigging is in disarray.
There is a capstan just aft of the foremast, and a windlass just aft of that. Also as on the previous model, there are deck hatches immediately forward and aft of the mainmast.

Bow detail. The bow transom is painted red. Atop it is a heavy beam tying the gunwales together and extending beyond them: perhaps fishing nets would be drawn over it?

One bow-backed deck shelter is covered with fabric, and a framework is present for a second shelter to be erected should the need arise. This makes me think this vessel is occupied by a family who would use it for small-scale commercial fishing and/or trading.

The rudder is unbalanced; the tiller is missing from the top of the rudder post. A crossbeam at the top of the stern transom is smaller in diameter than the one at the bow and does not extend beyond the vessel's sides.

I do not know the purpose of the horizontal beams on both sides of the vessel extending past the stern transom on this and the previous junk and on the raft that follows. They don't appear to serve as davits. If you know their purpose, please explain in the Comments.

Bamboo Raft, Taiwan. This very touristy model, essentially a nicknack, was built of shell or horn and represents a seagoing bamboo raft of a type once used for fishing. It is believed that Micronesia was settled by people using vessels like this prior to the development of the outrigger canoe.

Heavy crossbeams at the bow and stern are etched with zigzag patterns to represent lashings to the craft’s main longitudinal members, which would have been bamboo stalks. The mast rests on a heavy step that serves as another crossbeam amidships. On the foredeck is a representation of a basket of elaborate shape, probably for keeping the day’s catch. The item on the aft deck might represent a basket-built dinghy, a deckhouse, or possibly a net. Oars are tied to tholepins on both gunwale rails. Whether they are for propulsion or steering is unclear.

A fully battened balanced Chinese lugsail is represented, but the model is entirely without rigging. The sail is inscribed “Taiwan” in English. Translations of the Chinese characters and explanations of the other symbols on the sail are welcomed in the Comments.

Thai Market Boat. The model represents a Thai market boat of the type used in the famous Bangkok floating market. Market gardeners bring their produce to the market in these boats and sell directly from them. The model shows the construction of this boat type fairly accurately. It is a plank-built boat of sampan construction, with wide planks laid on deep frames. An important function of the frames is to support the tall washstrakes. Boats like this are often built of teak, and the model may be as well.
Most photos of the Bangkok market show paddles being used for propulsion, but the model has a long oar or sweep that pivots on a waist-high post and that would be rowed in a standing, forward-facing position. Perhaps the oar is used for efficiency in open water, then removed in the close confines of the market, where a paddle then comes into play.
A teak Thai market boat very much like this model was restored by the Small Open Boats shop in Port Republic, Maryland.

The long overhanging square bow allows for easy boarding and loading/unloading over the bow onto a wharf or other walkway, and the metal strips would protect it, especially if that walkway were of stone or concrete. Given the crowded conditions in the floating markets, over-the-bow loading a more efficient use of limited wharf space than tying up side-to.

All the decks and floorboards of the model are loose and removable, notched to fit over the deep frames.

The boat is steered by an underhung transom rudder of elegant shape. We speculate that when the oar is in use, the oarsman or -woman might operate the beautifully-curved tiller with one foot.
