Belizean Dugouts #2: Designs

Individual examples of even the simplest of types of watercraft can vary substantially from one another even when they are built within a limited geographic area for use in similar conditions. We discussed this recently in reference to coracles in the British Isles, and we found it to be equally true concerning dugout canoes in Belize. (See our previous post on our Belizean dugout "field work.")

Although many of Belizean dugouts we observed were in poor condition, they were all well designed and well crafted, revealing a sophisticated understanding of hull form and how it influences boat performance. Differences in hull form is the topic of this photo essay.

All the canoes below were photographed in the village of Hopkins, in the Stann Creek district, except one, which was found in Monkey River Town, in the Toledo district. The two are less than 40 miles apart as the crow flies.

First, we'll take a look at the forward sections.

Belize dugout canoe design details
This hull is narrow relative to its depth, with a nearly V-shaped bottom. As in many of the dugouts we saw, two strakes have been added to the dugout base to raise the sides. (Click any image to enlarge.)
Belize dugout canoe design details
Round-bottomed with fuller bilges.
Belize dugout canoe design details
Much broader relative to depth, with a somewhat V'd bottom and slacker bilges.
Now we'll compare entries:
Belize dugout canoe design details
Very lengthy, very hollow entry waterlines, from the bottom all the way to the deck.

Belize dugout canoe design details
Shorter entry and considerably less hollow: at the deck, the waterlines are nearly straight.
Belize dugout canoe design details
Hollow entry from bottom to top, with very gentle waterlines and no appreciable shoulder.
Belize dugout canoe design details
Much shorter entry: i.e., the bow here does not narrow down to a stem-like extension as in the previous canoe. This is the Monkey River canoe.

Belize dugout canoe design details
Fairly straight waterlines near the top, angling back to shoulders set well back. Not very sleek, but there's a lot of buoyancy and carrying capacity in the bow.
Belize dugout canoe design details
Now a look at different stem profiles. This one transitions from has a slightly sharp transition from the keep to the stem, which curves almost to vertical at the top.
Belize dugout canoe design details
The boat in the background has a soft transition between the bottom and stem, which is straight and angled for a good amount of overhand. The one in the foreground also has a soft bottom-to-stem transition, but the stem is curved, with less overhang.
Sterns also exhibit a great range of shapes, with the presence of transom sterns and canoe sterns making the most significant difference.

Belize dugout canoe design details
Most of the canoes have a sharp transition between the bottom and the sternpost. In this case, the sternpost is nearly vertical, and the waterlines are quite hollow from bottom to top, but the sternpost is not extended far from the hull's shoulders.
Belize dugout canoe design details
Another sharp bottom-to-straight sternpost transition, but this one is angled more for greater overhang. The waterlines are much less hollow than the one above, and nearly straight near the top. The homemade gudgeons identify this as a sailing canoe.
Belize dugout canoe design details
Only outboard-powered dugouts has transom sterns. The few we saw were all vertical, and they were all added to an open-backed hull, not carved integrally with the rest of the hull. The bottom sections on this one are a sharp V. This hull is also notable for its long, straight, parallel waterlines with little hull shaping amidships.
Belize dugout canoe design details
This transom stern, in contrast, are hollow. It's a rather tall but nicely shaped wineglass stern.
Belize dugout canoe design details
In contrast to the dugout with the mounted outboard, this much shorter paddling dugout is much shapelier at the gunwale waterlines, being significantly convex nearly from stem to stern.
In our next installment in this series on Belizean dugouts, we'll look at construction details.

Related Posts:

The Last Dugout Canoe Builder in Hopkins, Belize

This post is somewhat out of the ordinary for this blog, in that it's about a personal experience. It leads off a series of planned posts about dugout canoes in Belize in my more usual, somewhat analytical mode, but I found this, my experience of "field research," so fulfilling that I'm inclined to share it. It's mostly personal and there's not much in it that anyone will learn about Belizean dugouts, so feel free to skip it and wait for my next post, which will, I hope, prove more instructive on the subject.
* * *

My wife, Cate, and I were given a weeklong trip to Belize as a gift, including a stay at a really nice resort in the village of Hopkins, in the country's Stann Creek District (essentially the south-central coastal region). Prior to arriving, I queried the resort's management about the use of dugout canoes in the area. I received a vague response that they might still be in use, but little concrete information. They gave me two names of locals whom they thought built canoes, but on following up, I learned that neither of them did, nor did they know anyone else who did. On contacting representatives of various cultural groups in the country, I learned that dugouts are indeed in regular use in some areas, but these were too far away and too difficult of access to fit into my trip plans. So I went to Belize with only slim hopes of observing dugout canoes in use or under construction.

On my first full day in Hopkins, I borrowed a bicycle and rode into town. As I did so, I noticed a decrepit dugout canoe in front of a small, open-air restaurant. Returning the next day on foot with Cate, I was permitted to photographic it by an enthusiastic, middle-aged Garifuna man who was obviously connected with the restaurant in some way. In response to my questions, he told me that only two men still built dugouts in Hopkins: Nestor Augustin and Leo Lewis, both of whom lived in the north end of the village. He explained that there are no street addresses in Hopkins, but that if I asked around, I'd find them.
Dugout canoe, Belize
Approaching the rare and skittish Hopkins dugout in its native element (click any image to enlarge)
Belize dugout canoe
The canoe was for decoration only, well beyond its useful life, rotted throughout.
Belize dugout canoe
Nonetheless, one can see that it was nicely formed, with thin sides and hollow entry.
This didn't seem unreasonable, as the population of Hopkins is only about 1,000, and its people -- primarily Garifuna -- have a deserved reputation for friendliness. The dark-skinned Garifuna are, according to Wikipedia, descendants of West African, Central African, Island Carib and Arawak people." As with most Belizeans, their language is English, spoken with a Caribbean-influenced accent and many local idioms.

Cate and I walked the short distance to the village's north end and began asking people where the two boatbuilders lived. After only two or three queries, we found Mr. Augustin -- very elderly, very crippled (probably with arthritis), and apparently very ill. He was lying in a hammock on his porch and nearly unable to move. It was obvious that he was no longer building canoes. He was difficult of speech, and it was only with some effort that we communicated. He confirmed that he had built canoes in the past, and pointed me toward the home of his nephew, Leo Lewis.

We went the direction he pointed and along the way saw several dugout canoes under palm trees along the beach. Most of them were badly rotted, cracked, falling to pieces and well past their useful lives; some were on their last legs but apparently still in use; and a few were reasonably functional, though none were in really good condition. Unlike the canoe that we saw at the restaurant, most of these were "extended" dugouts, with strakes added to raise the sides. Most of those that appeared to be still in use were sitting on log or PVC pipe rollers that are used to shift them into the water and back.


Belize dugout canoe
The extended dugout Uncle Len Len has seen better days. The top strake is taller than on most canoes in Hopkins.
Belize dugout canoe
Uncle Len Len had a transom stern. She's now used as a dumpster for driftwood and other beach trash.
Belize dugout canoe
Our first evidence of dugout canoes in current use in Hopkins
Belize dugout canoe
Clean and with a fresh coat of paint, this dugout is evidently still in use in spite of its broken gunwale and crooked shape.
Belize dugout canoe
The same canoe as in the previous photo has a mast step and a hole in the thwart to accept a mast. Not in evidence are provisions for a rudder or any lateral plane.
With a few more questions, we found Mr. Lewis's home. Like many of the homes along the beach there, it was on stilts. Beneath it was a dugout that looked badly battered and unusable, but intact enough to be worth a closer look. Before I could do that, though, we had to introduce ourselves to the three women watching us from the house's screen-enclosed porch.

Doing so, I had the pleasure of meeting Mr. Lewis's wife -- elderly and wheelchair-bound, but open, welcoming and informative. Mr. Lewis was not at home, but he was nearby, working on some project outdoors with some other men. There were canoes there too. I thanked her and asked permission to photograph the canoe below the house, which she readily granted.
Belize dugout canoe

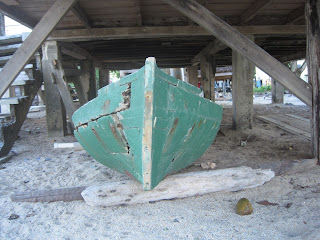

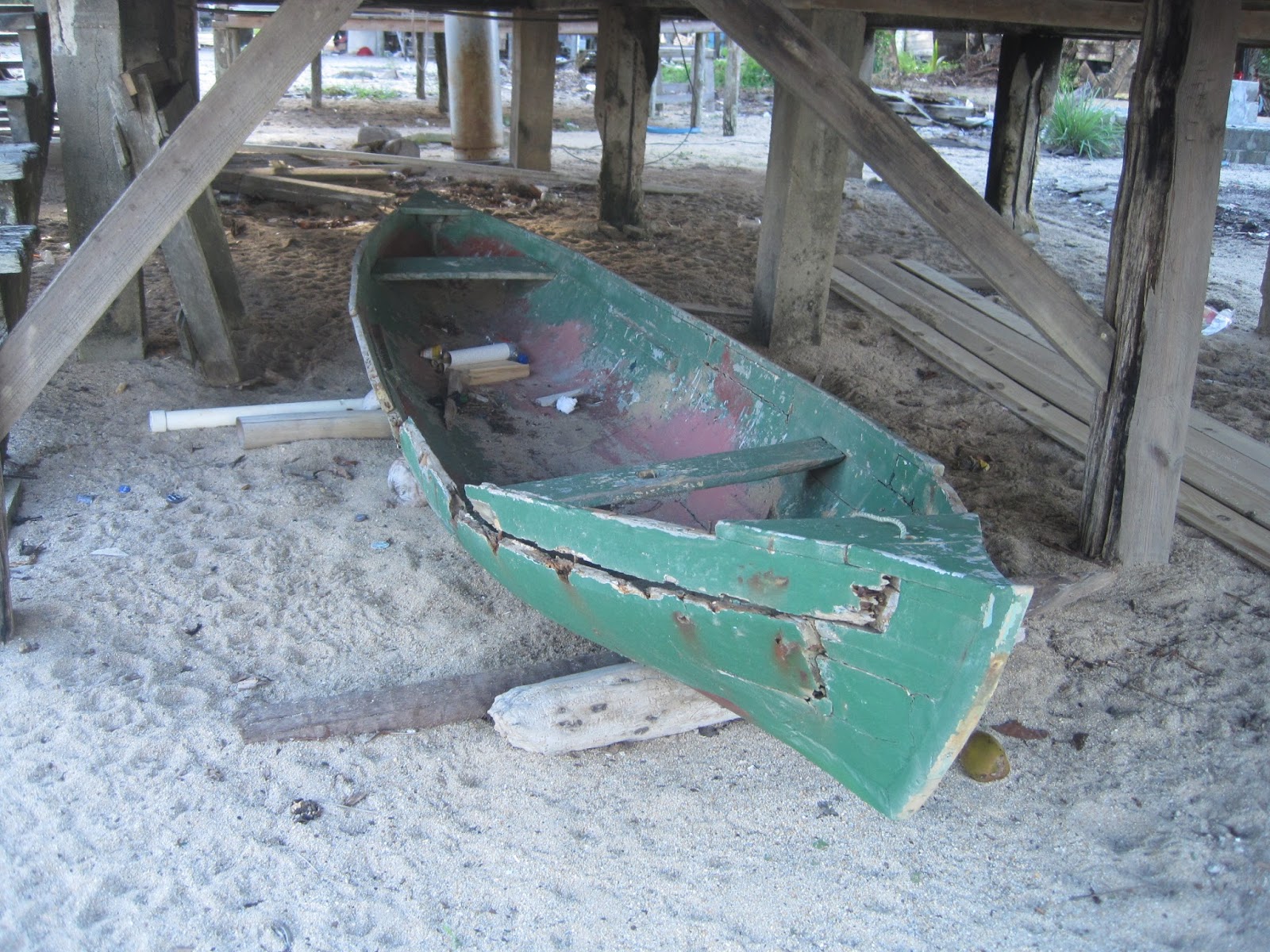

Moribund dugout canoe beneath the home of Leo Lewis
